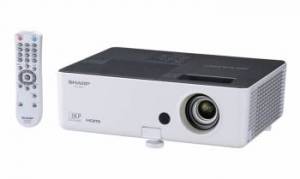

Sharp PG-LW2000

Sharp PG-LW2000
Product Code : Sharp PG-LW2000

Availability : In Stock

2800 Lumens,
2000:1 Contrast Ratio,
WXGA/DLP,
Lamp Life 5000zHrs,
with HDMI

Add To Enquiry Download Brochure
  • Description
Sharp PG-LW2000

Display Device Brilliant Color™ 0.65" DLP®
PC Compatibility UXGA (analog, intelligent compression), WSXGA+ (analog, intelligent compression), SXGA+ (intelligent compression), SXGA (intelligent compression), WXGA+ (analog, intelligent compression), WXGA (intelligent compression), XGA (intelligent compression), SVGA, VGA
Mac® Compatibility Mac 21" (intelligent compression), 19"/16"/13"
Resolution Capability (Maximum) UXGA analog RGB (1600 x 1200) with ImageACE™ Resizing
Resizing Intelligent ImageACE™ Resizing for compatibility up through UXGA (1600 x 1200)
3D Ready with DLP® Link™ Yes (requires compatible 3D field sequential content, PC/graphics card and 3D active shutter glasses)
3D Support 120Hz XGA (1024 x 768) and SVGA (800 x 600)
Lens Type 1:1.2x Manual Zoom and Focus, F2.5-2.7, f=21.8-25.6mm, Throw Ratio: 1:1.9~2.3
Closed Caption Yes (CC1, CC2)
Dot Clock 12-165 MHz
Frequency Range 15-110 kHz Horizontal / 45-85 Hz Vertical (DLP® Link™ Off)
Min/Max Projection Distance 5' 2" (for 40" diagonal, 4:3) up to 46' 5" (for 300" diagonal, 4:3)
Min/Max Screen Size 40" - 300" (diagonal, 4:3)
Optical Lens Shift N/A
Lamp 210 Watt (end-user replaceable) - model number AN-LX20LP or AN-LX20LP/1
Est. Lamp Life (standard/low-power mode) Up to 3,000 hours / up to 5,000 hours
Fan Noise (standard/low-power mode) 37dB / 32dB
Wireless Remote Control Yes (included)
Wired Remote No

Brightness 2800 Lumens
Contrast Ratio 2000:1
Display Resolution (Native) WXGA (1280 x 800)
DTV/HDTV Compatibility 480i, 480p, 540p, 576i, 720p, 1080i, 1080p with 4:3 and 16:9 aspect ratios
Native Aspect Ratio 16:9
Video Circuitry sRGB plus Brightness Boost and I/P Conversion
Video System NTSC/NTSC 3.58, 4.43/PAL (60Hz)/PAL-M/PAL-N/SECAM

Audio System 2 Watt Monaural

Computer Inputs Computer/RGB (or Component) – mini D-sub 15 Pin
Video Inputs HDMI®, Computer/RGB (or Component) – mini D-sub 15 Pin, Composite Video (RCA)
Audio Inputs One Pair RCA pin-type (L/R stereo)
Outputs Computer/RGB (or Component) (mini D-Sub 15-pin loop-through output)
Additional Connectors RS-232C Serial Port (9-pin mini DIN) USB port (Type B)

Optional Accessories Replacement Lamp: AN-LX20LP or AN-LX20LP/1; Ceiling Mounting Bracket: AN-XRCM30; Ceiling Mount Extension Tube (provides 26" to 39" extension): AN-EP101B; Angle Mount Joint (for use with ceiling mount): AN-JT200; 16" Security Cable System (for use with ceiling mounting bracket): AN-CMCSS16; 46" Security Cable System (for use with ceiling mounting bracket and extension tube): AN-CMCSS46; 3-RCA (component video) to 15-pin D-sub cable (10’): AN-C3CP2; 3D Active Shutter Glasses: X102; Light Duty Storage Bag: AN-C500SB
Optional Lenses N/A
Included Accessories Wireless Remote Control; two "AAA" batteries; 6' AC Power Cord; 6' RGB signal cable; initial setup guide; CD-ROM manual

Power Consumption 267 W with AC 100V / 0.50 W standby
Power Source 100V-240V AC, 50/60Hz

Dimensions (wxhxd) 12-3/32" x 3-45/64" x 9-21/32" (main body)
Weight (kg.) 5.1 lbs
